MARES XR HIGH VOLUME SINGLE BACKMOUNT SET

High Lift. Perfect Trim. Built for XR.

Streamlined. Stable. Fully customisable.

The Mares XR High Volume Single Backmount Set is a serious backplate-and-wing system for divers who demand excellent buoyancy control, durability and a clean, configurable equipment setup.

Featuring a high-volume donut-style wing, heavy-duty double-shell construction, 3 mm stainless-steel backplate and fully adjustable XR harness, this complete system provides a robust platform for divers progressing into extended range and technical diving.

If you're looking to move beyond a traditional recreational BCD and into a streamlined backplate-and-wing configuration, the Mares XR High Volume Single Backmount Set is ready to take you further.

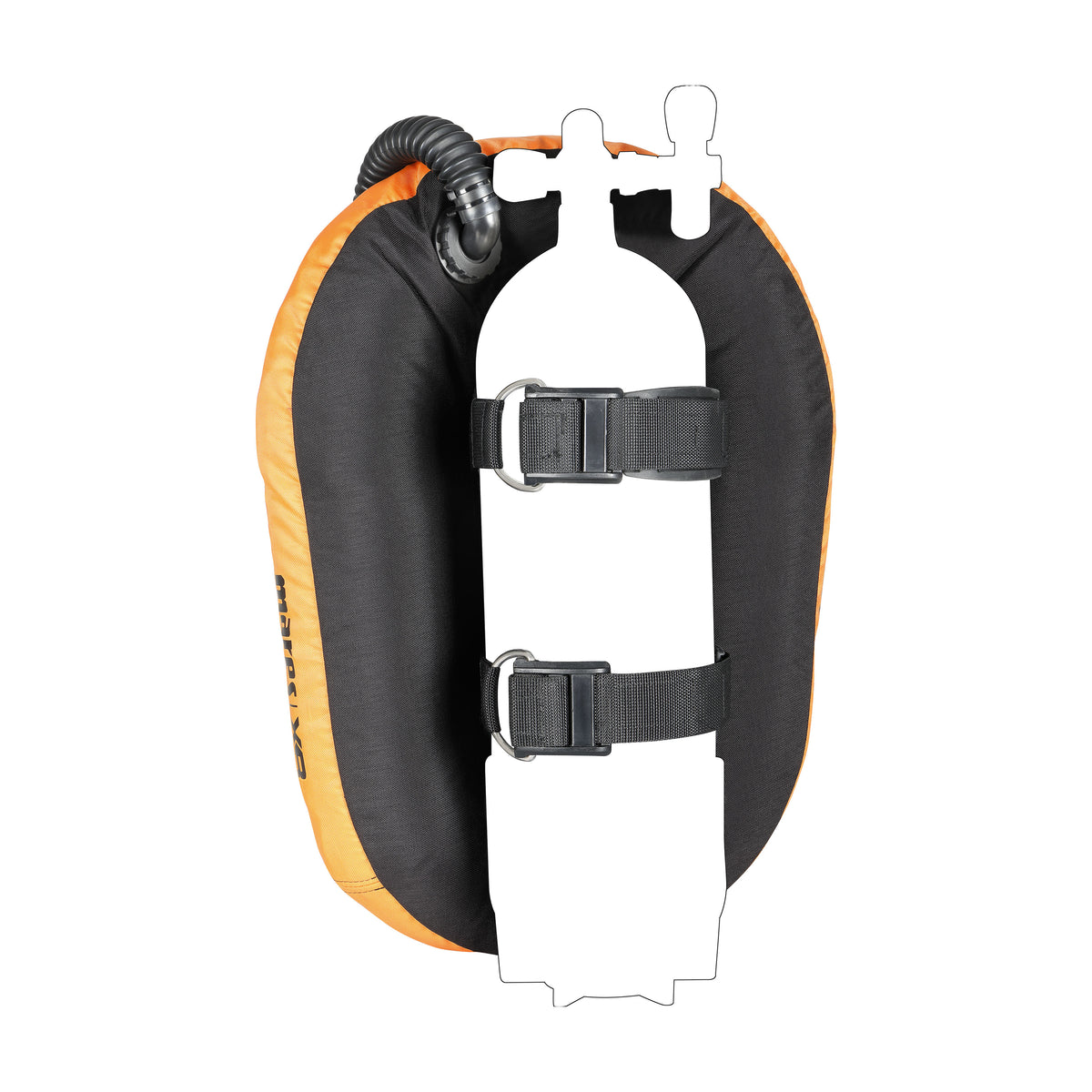

HIGH-VOLUME BACK BUOYANCY

The heart of the system is the high-volume donut-style bladder, providing manufacturer-rated 170 N / 17.5 kg lift capacity.

Positioning buoyancy behind the diver creates a clean, uncluttered front while supporting effective horizontal trim and streamlined positioning underwater.

The donut-style bladder allows gas to move around the wing as your position changes, providing responsive buoyancy control throughout the dive.

SERIOUSLY TOUGH CONSTRUCTION

XR equipment needs to handle demanding diving environments.

The outer shell is manufactured from rugged 1000D Cordura, providing excellent resistance against abrasion, scuffs and everyday wear.

Inside, a 210D nylon bladder provides the buoyancy cell while keeping the overall system practical and manageable.

It's a tough double-shell design built for divers who expect more from their equipment.

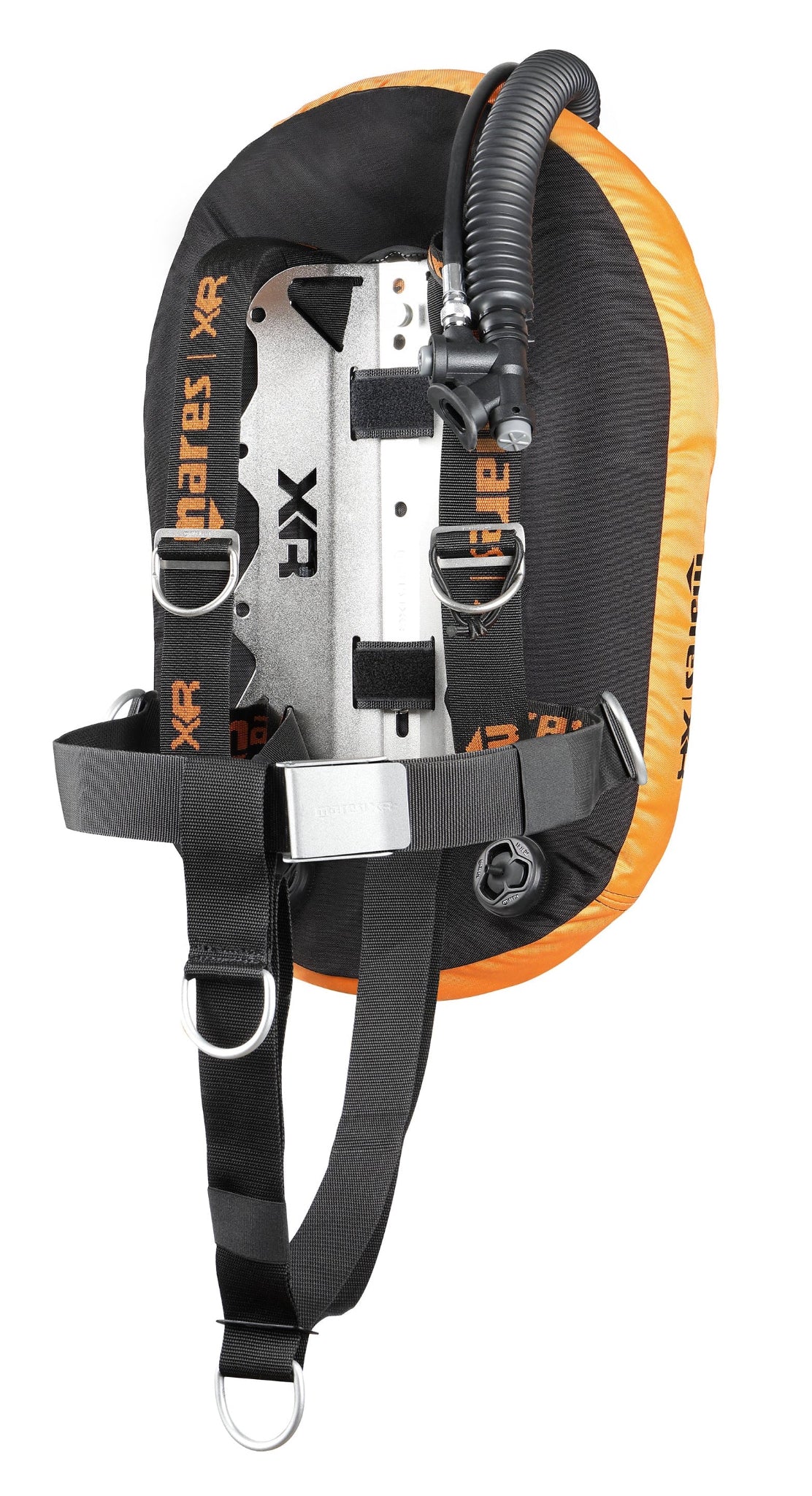

3 MM STAINLESS-STEEL BACKPLATE

The system is built around a substantial 3 mm stainless-steel backplate, weighing approximately 2.1 kg.

Smooth, rounded edges improve comfort and help protect your harness and exposure suit, while the stainless-steel construction adds strength and useful ballast directly behind the diver.

The bladder is secured using flat-head bolt screws and can be positioned vertically to help fine-tune the configuration to the individual diver.

FULLY ADJUSTABLE XR HARNESS

No unnecessary padding. No bulky jacket. Just a clean, dependable harness system.

The fully adjustable XR harness provides a one-size-fits-all configuration that can be tailored to the individual diver and their exposure protection.

Stainless-steel D-rings and trigliders provide robust equipment attachment and adjustment points, while the heavy-duty metal waist buckle securely closes the harness.

The result is a simple, strong and highly configurable system.

K-STYLE POWER INFLATOR

The K-Style Power Inflator provides straightforward buoyancy adjustment with an oval-shaped, flexible corrugated hose designed for comfortable positioning and operation.

The quick-release valve can be configured on either side, allowing further customisation to suit your preferred equipment setup.

SECURE SINGLE-CYLINDER MOUNTING

Two included tank straps with durable buckles make mounting your single cylinder straightforward and secure.

Combined with the rigid stainless-steel backplate and adjustable wing position, the system creates a stable connection between diver and cylinder while maintaining the streamlined philosophy of a proper backplate-and-wing setup.

BUILT FOR EXTENDED RANGE DIVING

The Mares XR High Volume Single Backmount Set combines the simplicity of a backplate-and-wing system with the durability expected from equipment designed for more demanding diving.

Its stainless-steel backplate provides a strong foundation, while the high-volume wing, adjustable harness and configurable components allow you to build a system around your diving rather than adapting your diving to your BCD.

STREAMLINE YOUR DIVING. PERFECT YOUR CONFIGURATION.

If you're progressing toward XR or technical diving, or simply want the clean configuration and excellent trim characteristics of a backplate-and-wing system, the Mares XR High Volume Single Backmount Set provides a serious platform for your next step.

BUILD YOUR CONFIGURATION. CONTROL YOUR TRIM. EXPAND YOUR DIVING.

Order your Mares XR High Volume Single Backmount Set from Central Coast Divers today.
